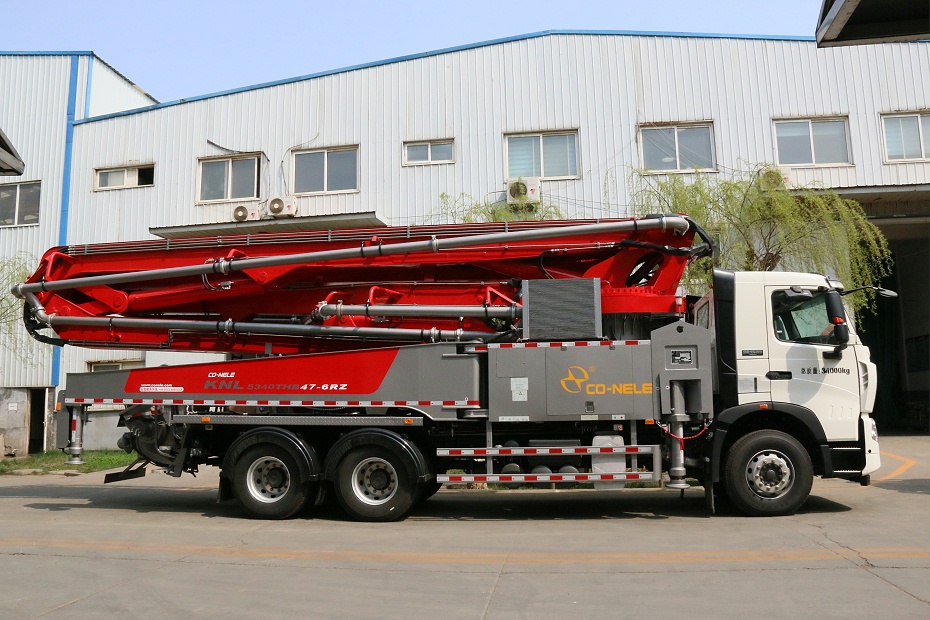

SINOTRUK HOWO 47m Concrete Pump Truck
|
Model |
KNL5351THB 47-6RZ |
||
|
Project |
Unit |
Value |
|
|
Pumping system |
Max. Theor. output(high/low pressure) |
m3/h |
62/105 |
|
Max. Theor. concrete output Pressure(high/low pressure) |
MPa |
9.5/5.6 |
|
|
Rated working pressure |
MPa |
32 |
|
|
Pumping frequency(high/low pressure) |
min-1 |
15/25 |
|
|
Hopper capacity |
L |
450 |
|
|
Filling height |
mm |
1250 |
|
|
Hydraulic system type |
|
Open loop |
|
|
Distribution valve |
|
S valve |
|
|
Oil cylinder dia.×stroke |
mm |
φ140×φ90×1800 |
|
|
Concrete cylinder dia.×stroke |
mm |
φ260×1800 |
|
|
Hydraulic oil cooling |
|
Air cooling |
|
|
Recommended concrete slump |
cm |
12~23 |
|
|
Max. aggregate dimension |
mm |
40 |
|
|
Placing boom |
Structure type |
|
47-6RZ |
|
Placing depth |
m |
47 |
|
|
Horizontal distance |
m |
43 |
|
|
Placing depth |
m |
36 |
|
