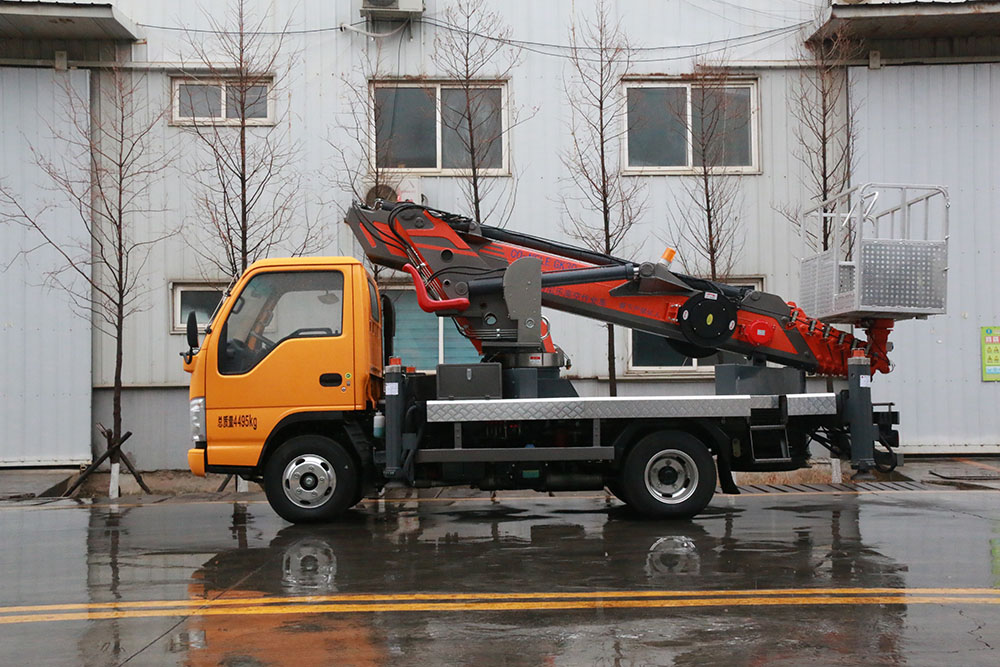

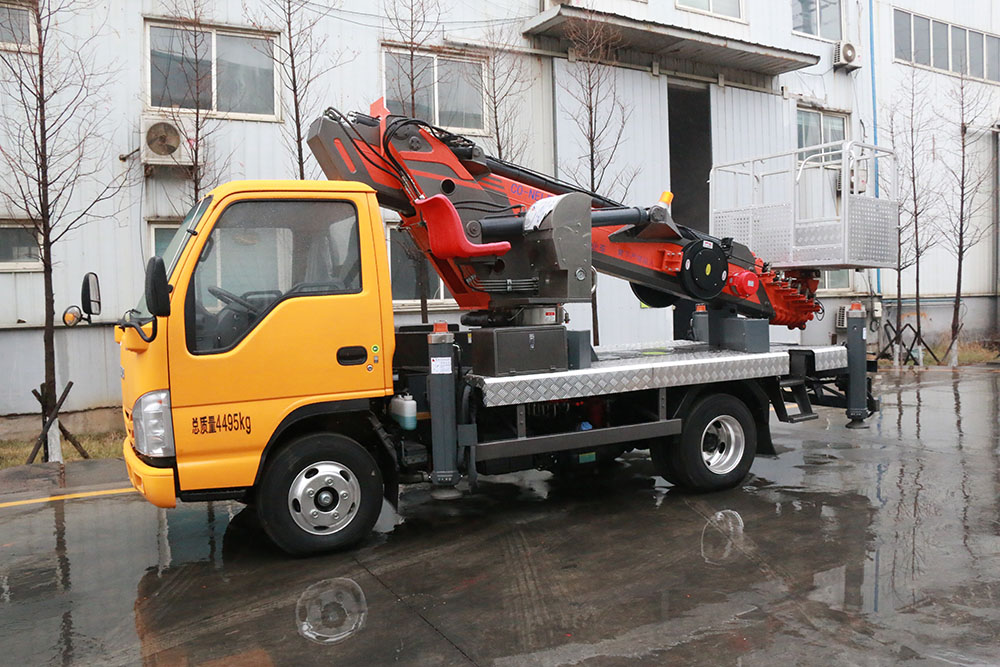

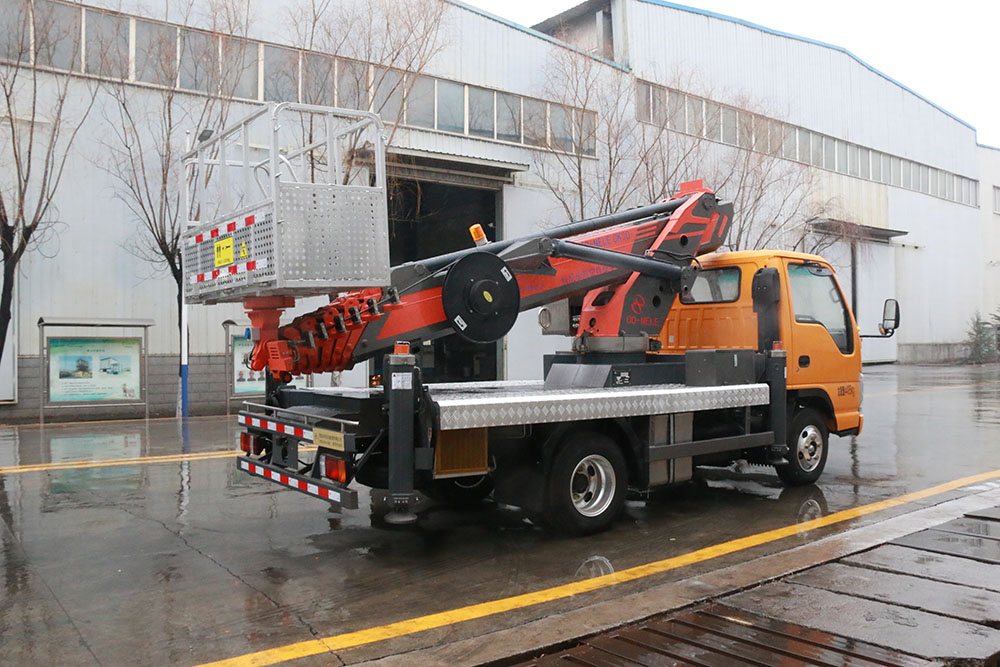

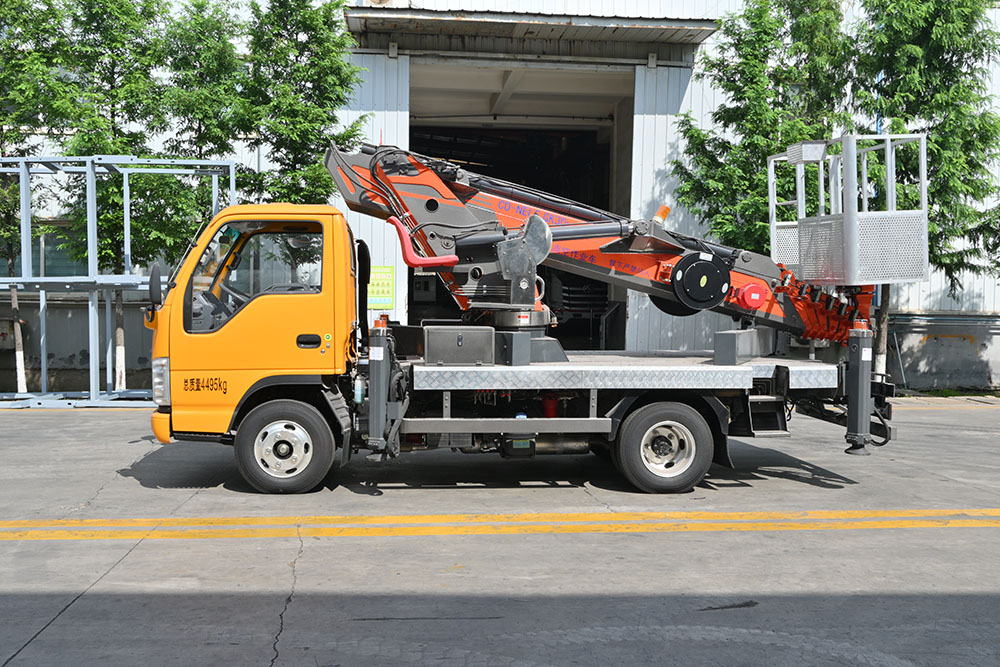

28.5m Aerial Lifting Platform

Chassis configuration:

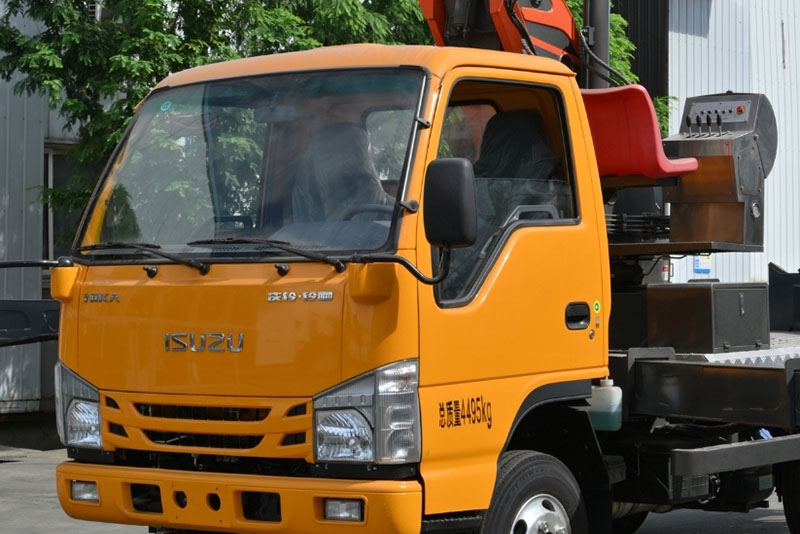

Chongqing isuzu
Total weight: 4495KG.
Engine: D20TCIF15 Dewei 120 HP engine.
Gearbox: Isuzu MSB fifth gear.
Wheelbase: 2800 mm.
Overall dimensions: 5995mm*2000mm*2700mm.
Others: electric doors and windows, air conditioning, central locking, reversing images, 650R15LT tires.

Top configuration:
Maximum working height: 28.5m..
Maximum working radius: 16m.
Rated load of platform: 400 kg.
Swing angle of boom: 360 degrees.
Platform rotation range: 360 degrees unlimited rotation.

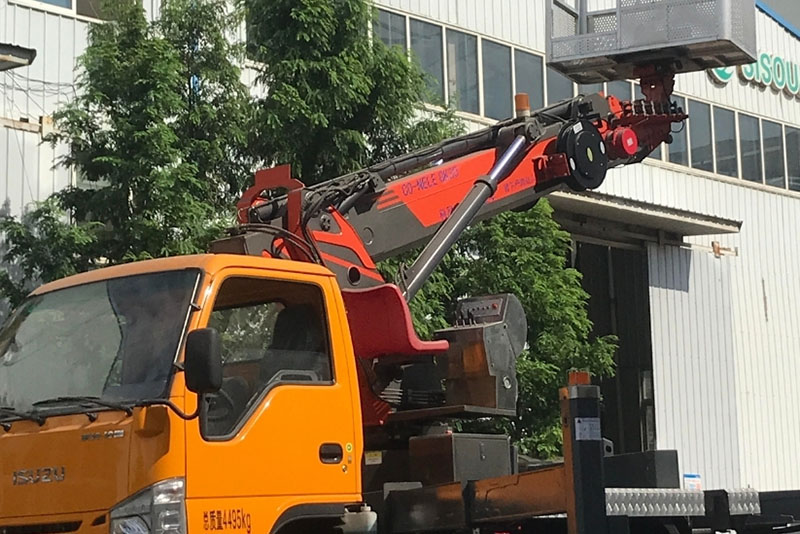

Arm: 7 arms, 6 synchronous telescopic arms, and the steel wire rope is provided with spare steel wire rope.
Operating system: hessman electronic control system, equipped with wireless remote controller, operated by three parties.
Hydraulic system: electro-hydraulic proportional valve, stepless speed regulation, equipped with emergency automatic power source (most of the market is manual)

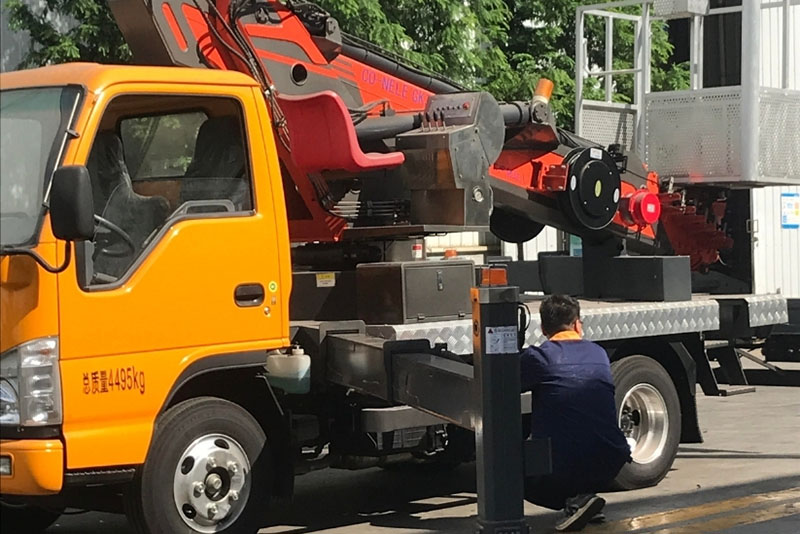

Hydraulic legs: X-shaped legs, 4 double-section legs, independently adjustable.
Treadmill: steel non-slip treadbase.
Safety devices: getting on and off interlock, emergency power source, two-way hydraulic balance valve.

Main advantages and characteristics:
1. The whole vehicle is not overweight, and the imported steel is made of Gao Qiangban above 1000mpa;
2, double leg, vertical and horizontal span of 6000 mm/5800 mm;

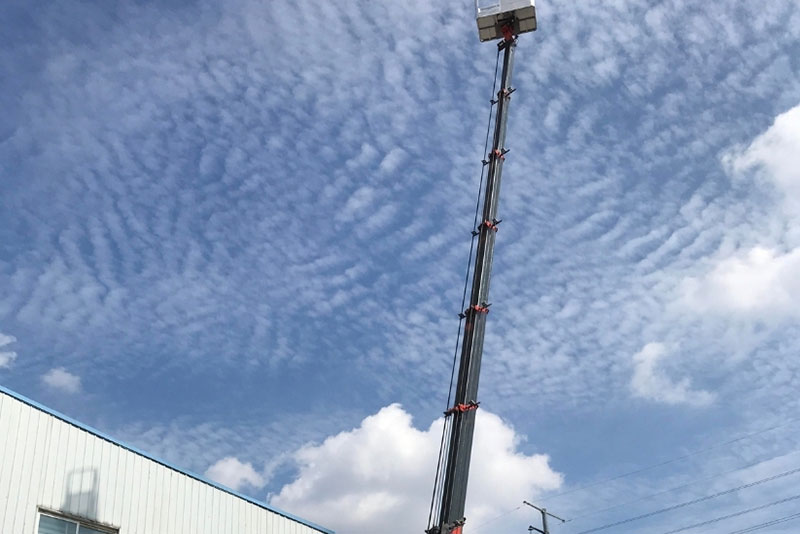

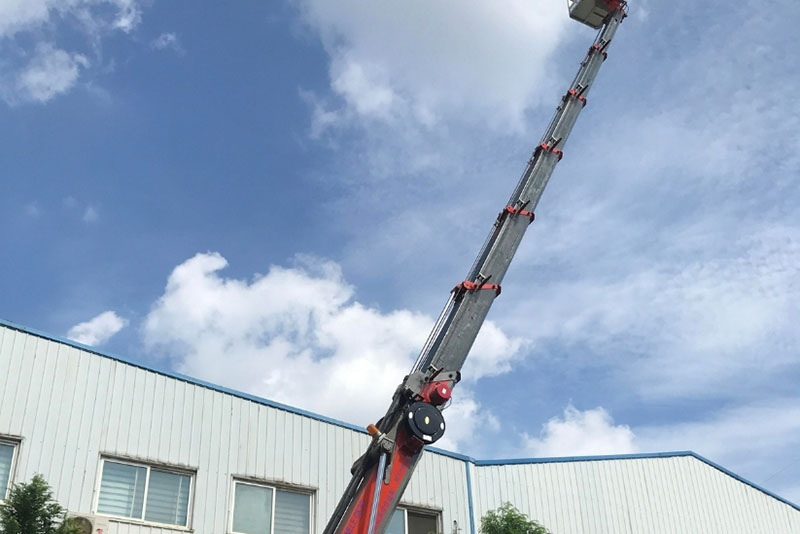

3. Multi-arm design (7 arms, 6 synchronous telescopic), lifting height of 28.5m..
4. Double-lift cylinder design. All the cars in the market are single-amplitude cylinders, which is more stable;

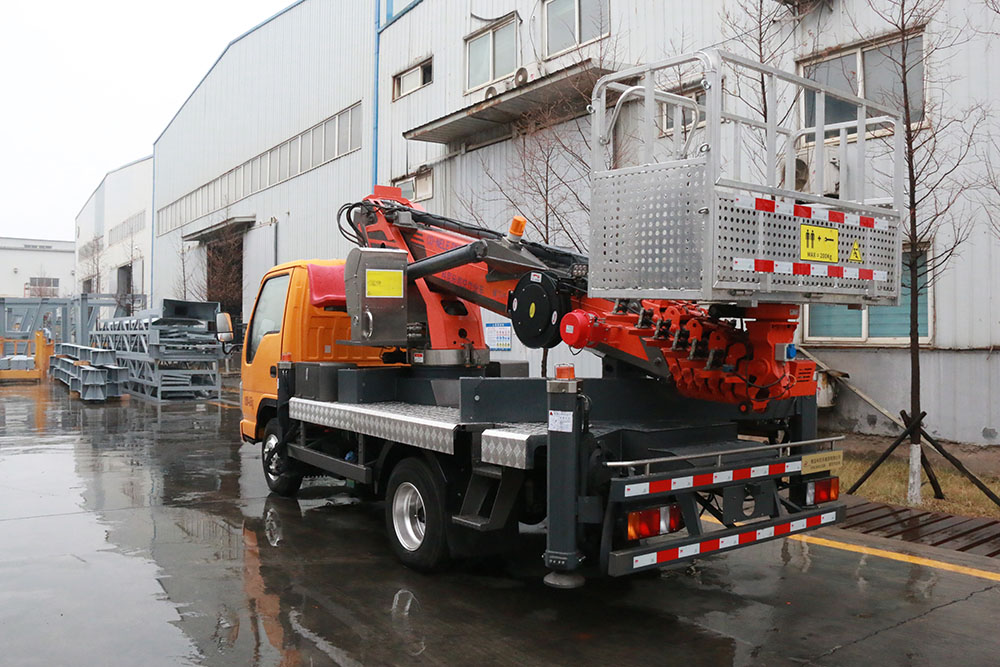

5, 1.6 meters hanging basket, with small platform, optional 1.8 meters 2 meters folding basket;
6. The height of the whole vehicle shall not exceed 2.8m, and it can be elevated;
7. The working radius is 16 meters, which is much larger than most yellow card models;
8, the radius of gyration is small, and it can be operated in a narrow space without leaving the body;
9. Isuzu chassis has low fuel consumption, strong power and stronger anti-building ability;
10. Carrying a 220V variable voltage power supply with the box makes it more convenient to work outdoors at high altitude.
