1. There is a towing mechanism, which can quickly and conveniently move to the required position in the construction site;
2. The short-distance construction site can be towed by a tractor to transfer the equipment in a short time;
3. It can be applied to construction sites limited by tower cranes or lifting equipment, which is very efficient;
 |

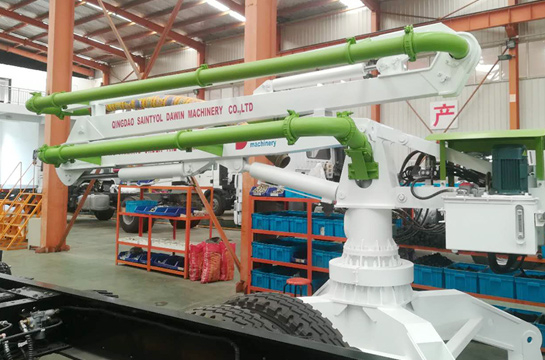

HGY13 walking hydraulic distributor
Maximum cloth radius: 13m Motor power: 4kW System pressure: 20Mpa Elevation:-2 ~ 84.4 Rotation angle: 360. Rotation speed: 0.46r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 4.6t (excluding counterweight) and 6.8t (including counterweight) |
 |
HGY15 walking hydraulic distributor
Maximum cloth radius: 15m Motor power: 4kW System pressure: 16Mpa Elevation: 0 ~ 89. Rotation angle: 360. Rotation speed: 0.2 ~ 0.3r/min Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 4.5t (excluding counterweight) and 5.6t (including counterweight) |
 |
HGY17 walking hydraulic distributor
Maximum cloth radius: 17m Motor power: 5.5kW System pressure: 20Mpa Elevation: 4 ~ 90. Rotation angle: 360. Rotation speed: 0.2 ~ 0.3r/min Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 6.2t (excluding counterweight) 8.7t (including counterweight) |
 |
HGY21 walking hydraulic distributor
Maximum cloth radius: 21m Motor power: 22kW System pressure: 16Mpa Elevation: 0 ~ 90. Rotation angle: 360. Rotation speed: 0.32r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 8.8t (excluding counterweight) and 10.1t (including counterweight) |
 |
HGY23 walking hydraulic distributor
Maximum cloth radius: 23m Motor power: 22kW System pressure: 32Mpa Elevation: 0 ~ 90. Rotation angle: 360. Rotation speed: 0.32r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Gross weight: 9.1t (excluding counterweight) and 10.4t (including counterweight) |
