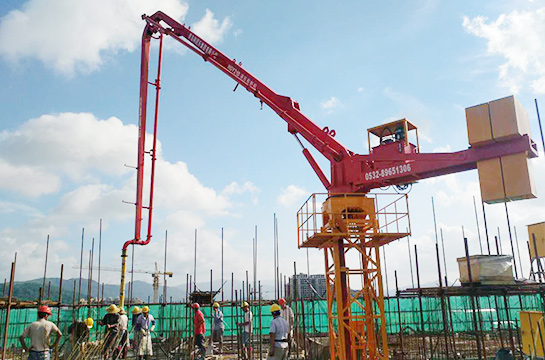

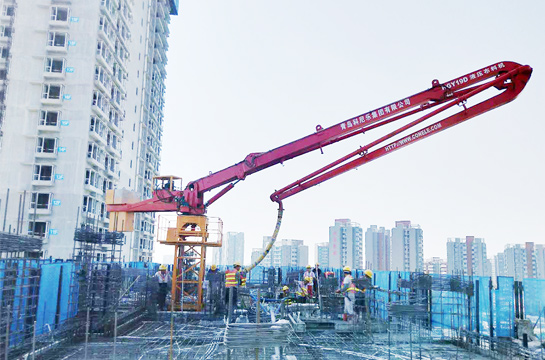

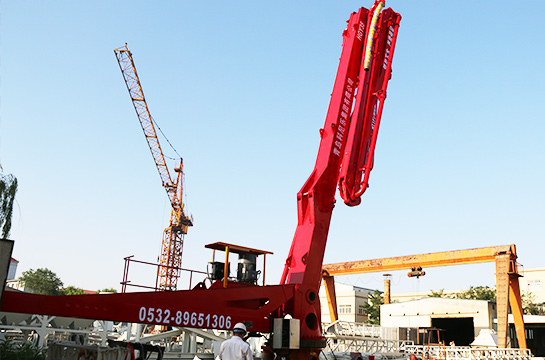

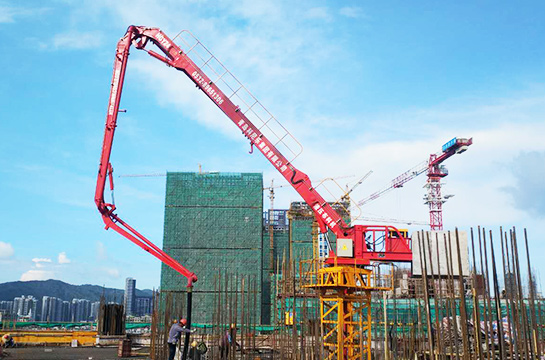

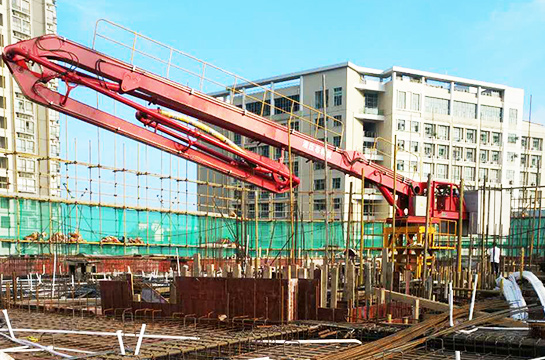

Elevator Lifting Hydraulic Concrete Placing Boom

Rated 5.00 out of 5 based on 1 customer rating

(Hot product)

1. Self-help climbing by building elevator shaft space, which will rise with the rise of floors, and the process is simple and convenient.
2. According to different product models, there are two kinds of jacking structures: jacking rod and jacking frame.
3. Design different types of guiding and supporting structures according to the size of the elevator shaft on site.

Lifetime warranty, provide technical support.
Strong production capacity and technical support
Perfect after-sales service system

Category: Concrete Placing Boom Comments:

description
Booking products

1. Self-help climbing by building elevator shaft space, which rises with the rise of floors, and the process is simple and convenient;
2. According to different product models, there are two kinds of jacking structures: jacking rod and jacking frame.
3. Design different types of guiding and supporting structures according to the size of the elevator shaft on site;
4. It can meet the concrete pouring requirements of super-high-rise working face, and is not limited by height;
5. Jack-up operation is very simple, scientific safety protection device is economical and efficient;
6. this type of cloth machine is mainly suitable for high-rise and super-high-rise buildings with hoistways.

	HGY19 hydraulic distributor with climbing type in elevator shaft Maximum cloth radius: 19m Motor power: 5.5kW System pressure: 32Mpa Elevation: 0 ~ 87. Rotation angle: 360. Rotation speed: 0.32r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 11.2t (including counterweight)
	HGY21 hydraulic distributor with climbing type in elevator shaft Maximum cloth radius: 21m Motor power: 5.5kW System pressure: 32Mpa Elevation: 0 ~ 87. Rotation angle: 360. Rotation speed: 0.32r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 11.7t (including counterweight)
	HGY24 hydraulic distributor with climbing type in elevator shaft Maximum cloth radius: 24m Motor power: 5.5kW System pressure: 25Mpa Elevation: 0 ~ 65. Rotation angle: 360. Rotation speed: 0.3-0.8r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 16.2t (including counterweight)
	HGY28 hydraulic distributor with climbing type in elevator shaft Maximum cloth radius: 28m Motor power: 11kW System pressure: 28Mpa Elevation: 0 ~ 85. Rotation angle: 360. Rotation speed: 0.32r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 16.5t (including counterweight)
	HGY35 hydraulic distributor with climbing type in elevator shaft Maximum cloth radius: 35m Motor power: 30kW System pressure: 32Mpa Elevation: 0 ~ 76. Rotation angle: 400. Rotation speed: 0.66r/min. Hose length: 3m Diameter of conveying pipe: 125mm. Total weight: 25.65t (including counterweight)
