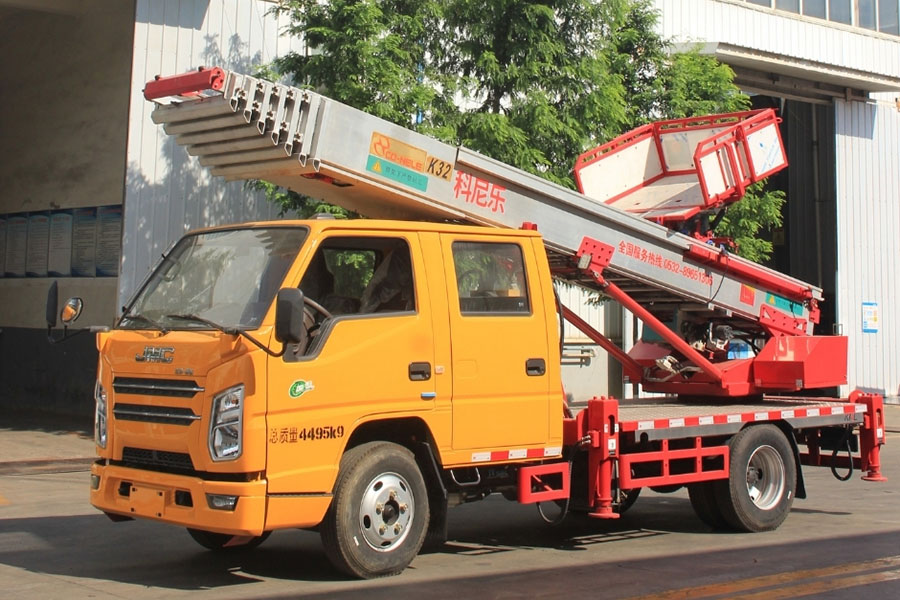

KNL5040TBA 32m Ladder Truck

KNL5040TBA moving vehicle digests and absorbs Korean ladder truck technology, and develops it in combination with domestic use. The vehicle's carrying platform can carry 400~500 kilograms, and the maximum working height is 32 meters. It has the characteristics of simple operation, strong flexibility, high work efficiency and wide application. It can be widely used in high-altitude handling, engineering leasing, curtain wall construction, roof solar energy, roof waterproofing, advertising anti-aircraft guns, power maintenance, installation of outdoor air conditioners, ship maintenance, moving companies, cement sand handling, road and bridge maintenance and other work scenes. At the same time, the car is a blue license, C-license driving, non-operating vehicle, reducing the user's use cost.

Technical parameter

Main configuration

Product feature work scene

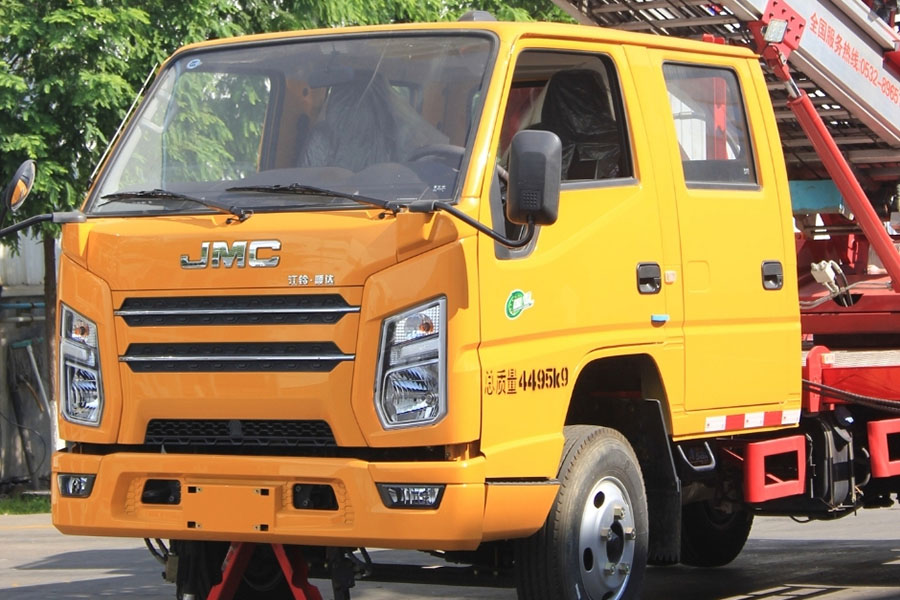

1. Chassis The chassis adopts Jiangling chassis,

which is widely used in engineering and power emergency repair, with low failure rate and high reliability. If the vehicle weighs less than 4.5 tons, you can hang a blue card and a C1 driver's license.

2. Electrical system High degree of intelligence, smooth start, middle acceleration, and finally deceleration stop. The transportation of materials is controlled by wireless remote control, which is convenient and fast. Self-memory function, one-button lifting, reducing the intensity of work. The console can start and stop the engine with one button, which is convenient and quick.

3. Hydraulic system With electronic control proportional valve, remote control can start without impact, which can control the running speed of the car. High-power cycloidal motor, stronger transportation traction. The slewing support is integrated with turbine reducer, which makes the slewing more stable. Imported balance valve, safe and reliable, long service life. Design multiple hydraulic safety valves to ensure the safe operation of the system.

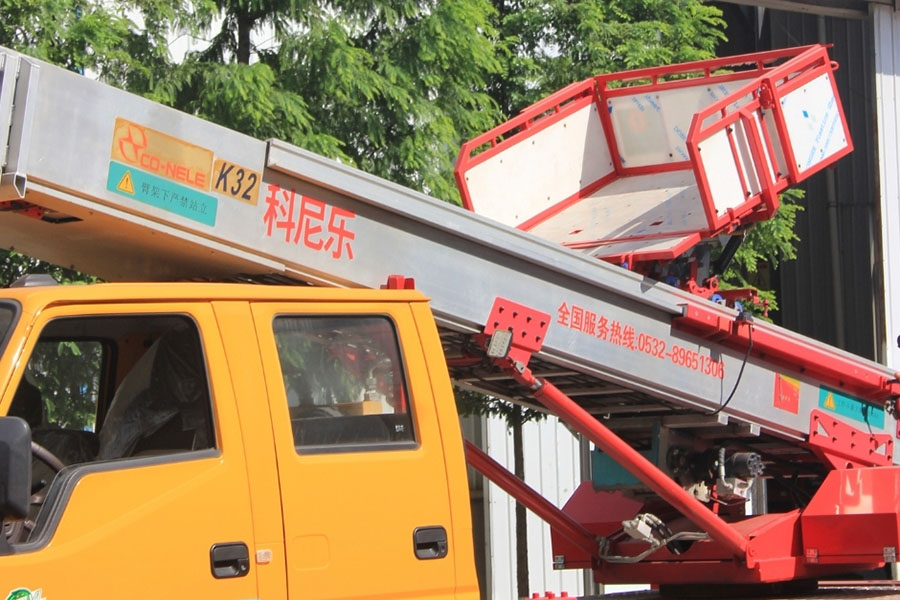

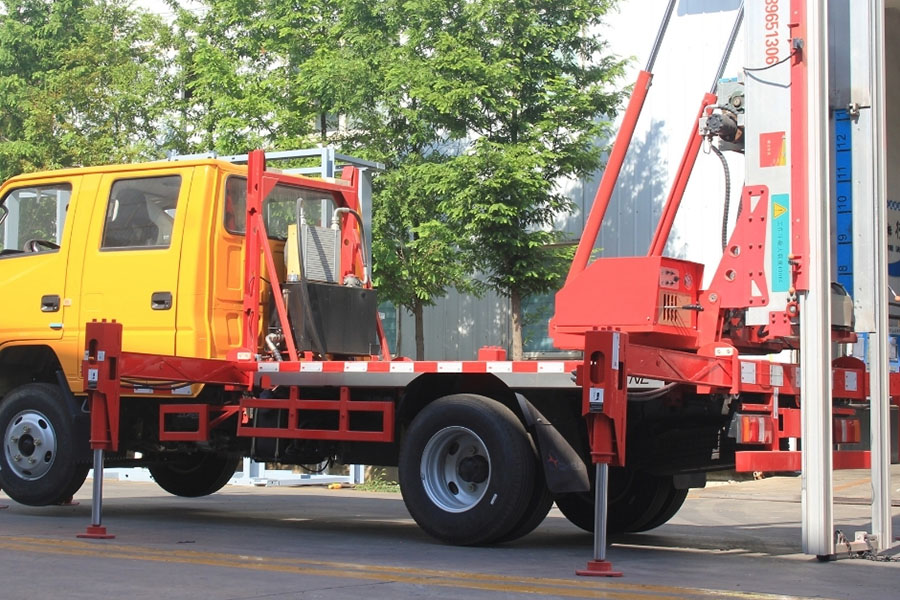

4. Mechanical structure The ladder arm adopts the same type of ladder arm from Korea, which is a new type of aluminum alloy structure, ensuring quality and service life. Adopt high-strength nylon slider and roller to reduce telescopic friction of ladder arm. Connection mode of steel wire rope to realize synchronous sliding. The cooperation between the trolley and the ladder arm adopts the working mode that multiple rollers and guide wheels act at the same time to ensure the normal operation of the trolley. The trolley roller adopts damping structure to ensure the smooth operation of the trolley during working. The support legs are made of T 700 high-strength steel plate to ensure the safety of vehicle support.

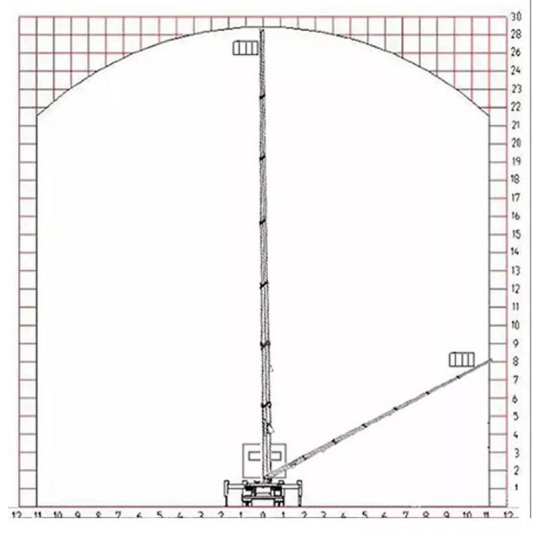

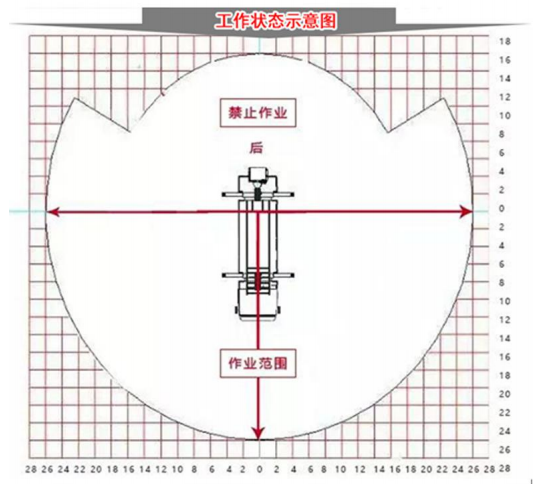

Schematic diagram of working scope
