型号 Model
|

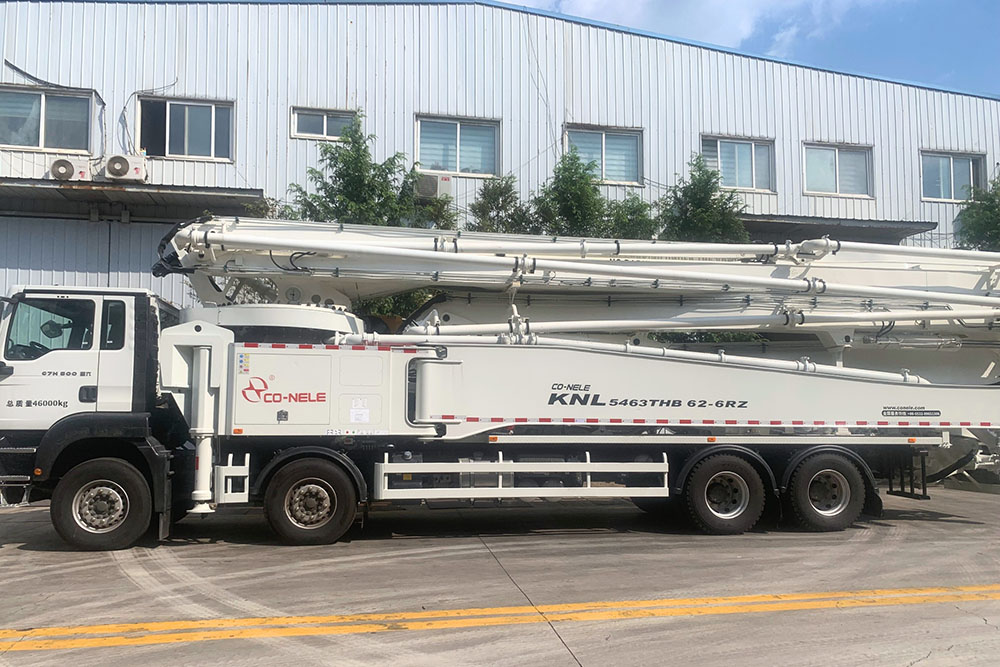

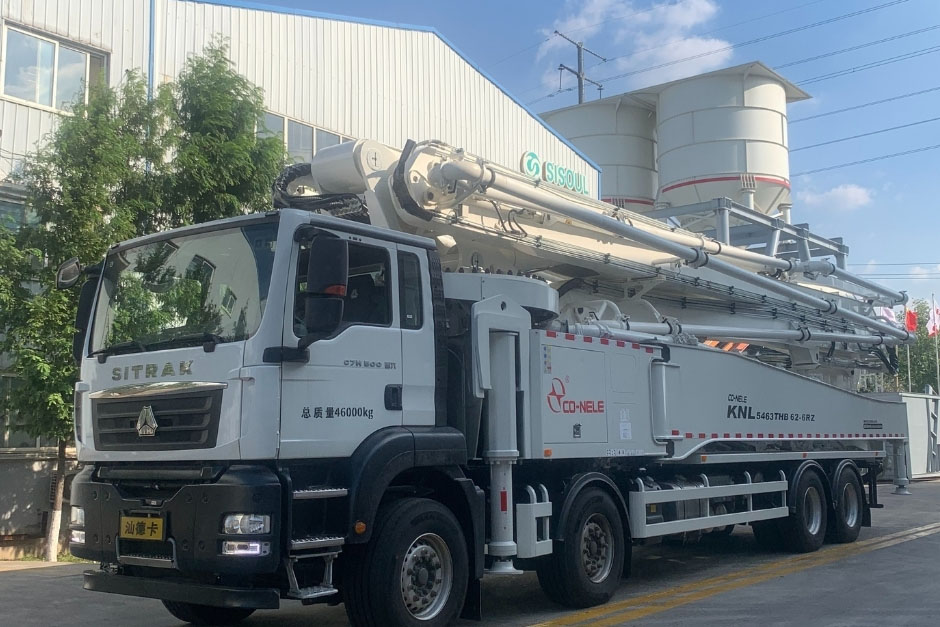

KNL5443THB62-6RZ
|
|
|
项目Item
|
单位Unit
|
值 Parameter
|
|
泵送系统 Pumping system
|
最大理论输送量Max.Theor.output
|
m³h
|
170
|
|
混凝土最大理论出口压力Max.Theor.concrete output Pressure
|
MPa
|
10.0
|
|
料斗容积Hopper capacity
|
L
|
600
|
|
上料高度Filing height
|
mm
|
1450
|
|
液压系统型式Hydraulic system type
|
|
开式 Open Loop
|
|
分配阀形式Distribution valve
|
|
S管阀 S valve
|
|
混凝土缸径×行程Concrete cylinde dia xstoke
|
mm
|
φ260×2100
|
|
液压油冷却Hydraulic oil coling
|
|
风冷Air cooling
|
|

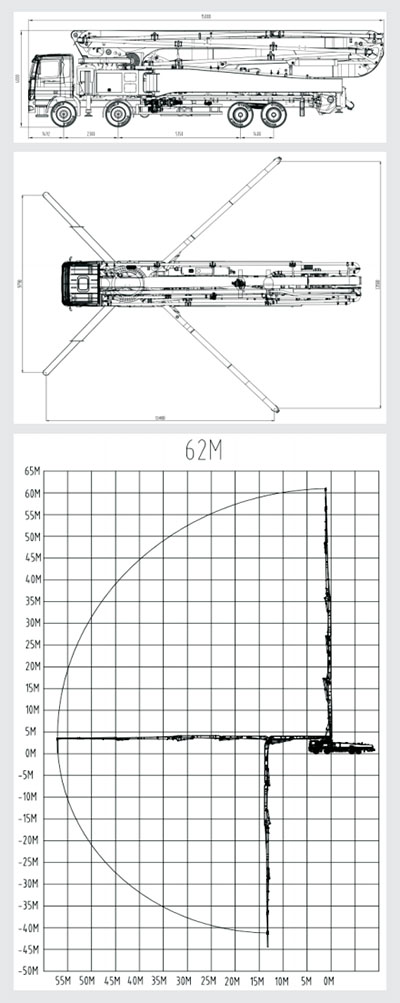

臂架 Placing boom
|
结构形式Structure type
|
|
62-6RZ
|
|
最大布料高度Placing height
|
m
|
62.0
|
|
最大布料半径Horizontal distance
|
m
|
57.0
|
|
回转角度Slewing angle
|
|
±270°
|
|
输送管直径Pipe diameter
|
mm
|
125
|
|
臂架最小打开高度Min.heigh of opening placing boom
|
m
|
16.5
|
|
底盘及整车Chassis & the whole machine
|
支腿跨距(前×后×纵向)
Outriggers span (front×rear×side)
|
mm
|
9790×13500×11400
|
|
轴距Wheelbase
|
mm
|
2300+5150+1400
|
|
发动机型号Engine type
|
|
MC13.50-61
|
|
发动机额定功率Engine power
|
KW
|
371
|
|
燃油箱容积il tank cubage
|
L
|
400
|
|
尾气排放标准Tail gas exhaust standard
|
|
国Ⅵ CHINA VI
|
|
整车外形尺寸(长×宽×高)Overall dimensions
|
mm
|
15000×2550×4000
|
|
液压油箱容积Oil tank volume
|
L
|
660
|
|
控制方式Control mode
|
|
手动+遥控 Manual＋remote control
|
|
混凝土管清洗方式Pipe cleaning mode
|
|
水洗/干洗 Water cleaning/dry
|
|
主要元件配置 Main Components Configuration
|
臂架控制模式Boom Control mode
|
|
手动、无线遥控系统
Manual+remote control
|
|
支腿打开方Legs Open
|
|
前X型伸缩支腿，后摆腿
Front:X-Type Retractable Leg,
Back:Swing Leg
|
|
臂架钢材Boom Steel
|
|
高强钢板
High Stress Steel Plate
|
|
控制电源Power Supply
|
|
底盘自带电源
Chassis With Power Supply
|
|
工作电压Working Voltage
|
|
DC24V
|
|
液压系统类型Hydraulic System Type
|
|
开式 Open Loop
|
|
主液压油泵品牌main Hydraulic Pump
|
|
力士乐 Rexroth
|
|
主油泵排量main Hydraulic Pump Displacement
|
|
190+190 ml/r
|
