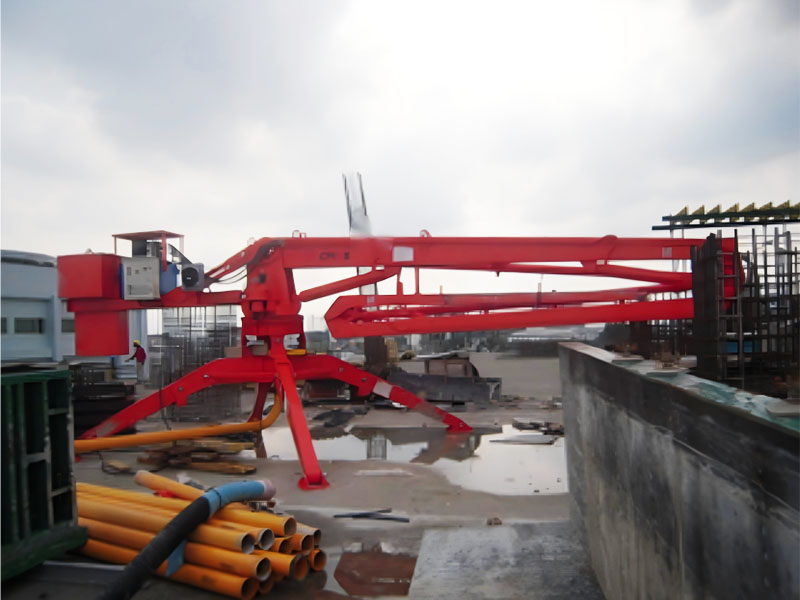

Model: HGY17
Horizontal reach： 17M
Rotation：360°
Power Output ：5.5 KW
System Pressure ：20 MPa
Boom deployment method： Three-R
Please contact us for additional models and pricing.
Model: HGY17
Horizontal reach： 17M
Rotation：360°
Power Output ：5.5 KW
System Pressure ：20 MPa
Boom deployment method： Three-R
Please contact us for additional models and pricing.
CO-NELE concrete placing booms are engineered for efficiency, stability, and reliable performance on complex construction sites. Supported by extensive participation in large-scale and landmark projects, our placing booms have been repeatedly selected for projects where construction accuracy, site coordination and long-term reliability are essential.
From high-rise buildings to major infrastructure developments, CO-NELE placing booms enable smooth concrete distribution, precise placement, and efficient workflow. Their proven track record in large projects is a key reason contractors and developers choose CO-NELE as a trusted equipment partner.
Designed for adaptability, CO-NELE placing booms are offered in multiple working ranges and structural configurations, with customized solutions available to meet different building layouts, site constraints, and project requirements.
| Model | HGY17 | ||
| Permance | Horizontal reach (m) | 17m | |
| Rotation (° ) | 360° | ||
| Elevation angle(° ) | 0~84° | ||
| Slewing brake | Normally closed | ||
| Working environment temperature | -5℃~40℃ | ||
| Weight(T) | Weithout counterweight | 5 | |
| Counterweight | 7.2 | ||
| Outrigger Span | 4230×4230 | ||
| Control System | Power | 380V/50HZ | |
| Power Output (kW) | 5.5 | ||
| Ptotection grade | IP54 | ||
| Insulation clas | F | ||
| System Pressure(MPa) | 20 | ||
| Control mode | Cable/Radio remote | ||
| Boom | Duct cleaning method | Wet Wash/Dry cleaning | |
| Boom open way | Three R | ||
| Inner diameter of delivery pipe (mm) | Φ125 | ||
| End rubber hose (m) | 3 | ||
| Length (mm) | 6670/5720/4610 | ||
| Corner (° ) | 84/180/180 | ||
Floor Jack-up Type Concrete Hydraulic Placing Boom
