32m Truck-mounted Concrete Pump

1. Powerful Pumping Performance – Excellent Material Adaptability

• High-pressure pumping system with a maximum outlet pressure of 10 MPa, ensuring strong pumping capacity and excellent adaptability to different concrete mixes.

• Cylinder swing and reversing capability improved by 40% compared to industry benchmarks, allowing smooth operation even after long waiting times with concrete inside the system.

2. Stable Operation – High Reliability on Site

• Equipped with active boom vibration damping technology, significantly reducing boom shaking during operation for safer and more stable concrete placing.

• External boom linkage design achieves effective lightweight construction while maintaining overall structural rigidity and stability.

• Industry-first open hydraulic system with pressure-based reversing technology, delivering smoother and more reliable pumping direction changes.

3. Energy Saving & Cost Reduction

• Optimized engine power output curve precisely matched with real construction working conditions to reduce fuel consumption.

• Intelligent coordination between boom movements and pumping operations across different working scenarios, further improving energy efficiency and lowering operating costs.

4. High-End Customization – Professionally Matched Solutions

• Product development and configuration guided by a technical team led by top-level industry chief engineers.

• Supports both superstructure-only and complete vehicle customization, offering multiple optional configurations.

• OEM and private-label solutions available to meet diverse market and project requirements.

5. Qualified for Global Export – International Certifications

• Certified under China Compulsory Certification (CCC) standards.

• Compliant with ISO 9001 International Quality Management System.

• Fully certified with EU CE conformity, meeting European safety and quality requirements.

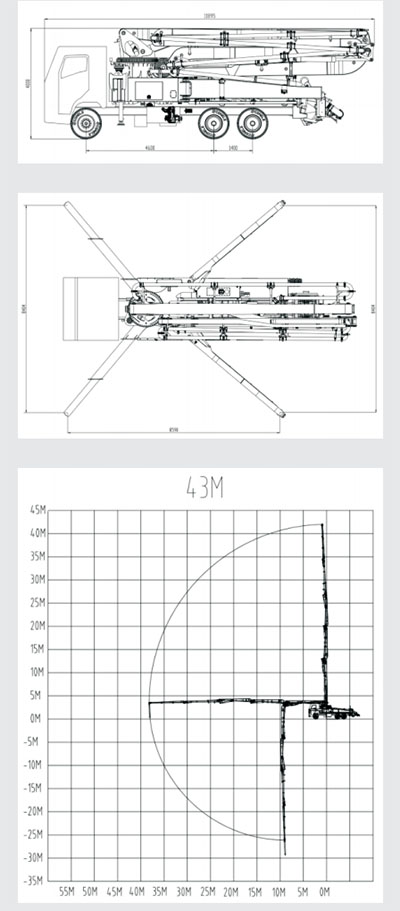

Technical Parameters

Model KNL5208THB32-5RZ Item Unit  Parameter Pumping system Max.Theor.output m³h 100  Max.Theor.concrete output Pressure MPa 7.3  Hopper capacity L 600  Filing height mm 1400  Hydraulic system type Open Loop Distribution valve S valve Concrete cylinde dia xstoke mm φ230×1400 Hydraulic oil cooling Air cooling Placing boom Structure type 32-5RZ Placing height m 32.0  Horizontal distance m 27.1  Slewing angle ±270° Pipe diameter mm 125  Min.heigh of opening placing boom m 5.5  Chassis & the whole machine Outriggers span (front×rear×side) mm 5950x5350x6270 Wheelbase mm 4500 Engine power KW 201 Oil tank cubage L 400  Tail gas exhaust standard CHINA VI Overall dimensions (L x W x H) mm 9100x2500x3530 Oil tank volume L 400  Control mode Manual＋remote control Pipe cleaning mode Water cleaning/dry Boom Control mode Manual+remote control Main Components Configuration Legs Open Front:X-Type Retractable Leg, Back:Swing Leg Boom Steel High Stress Steel Plate  Power Supply Chassis With Power Supply Working Voltage DC24V Hydraulic System Type Open Loop Main Hydraulic Pump PUSH/SKS Main Hydraulic Pump Displacement 190 ml/r
